宁波TX8210(稳压LDO)

Features

? Low power consumption:8uA (Typ.)

? Low voltage drop:

0.12V@100mA@VOUT=3.3V(Typ.)

? Standby Mode: 0.1uA

? Low temperature coefficient

? High input voltage (up to 8V)

? Output voltage accuracy: tolerance ±2%

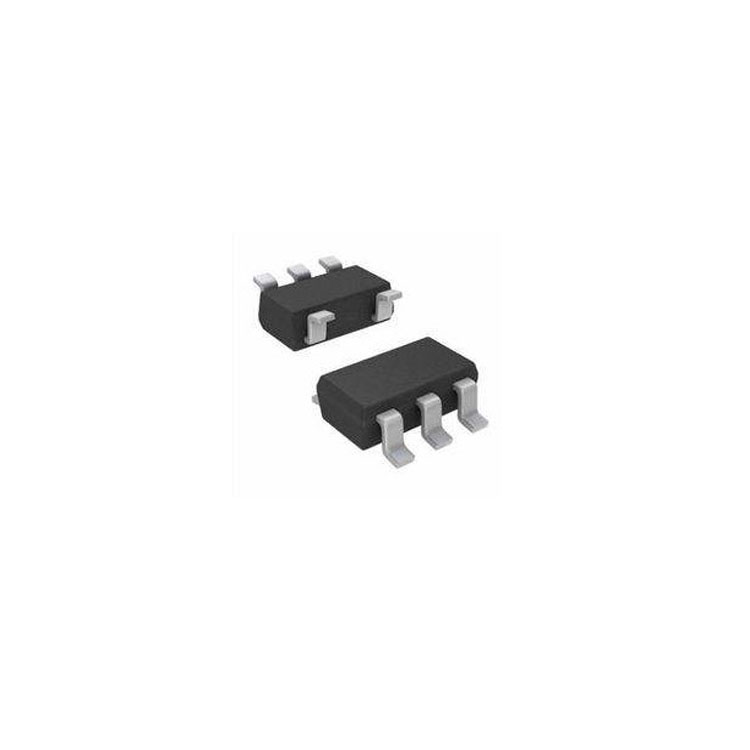

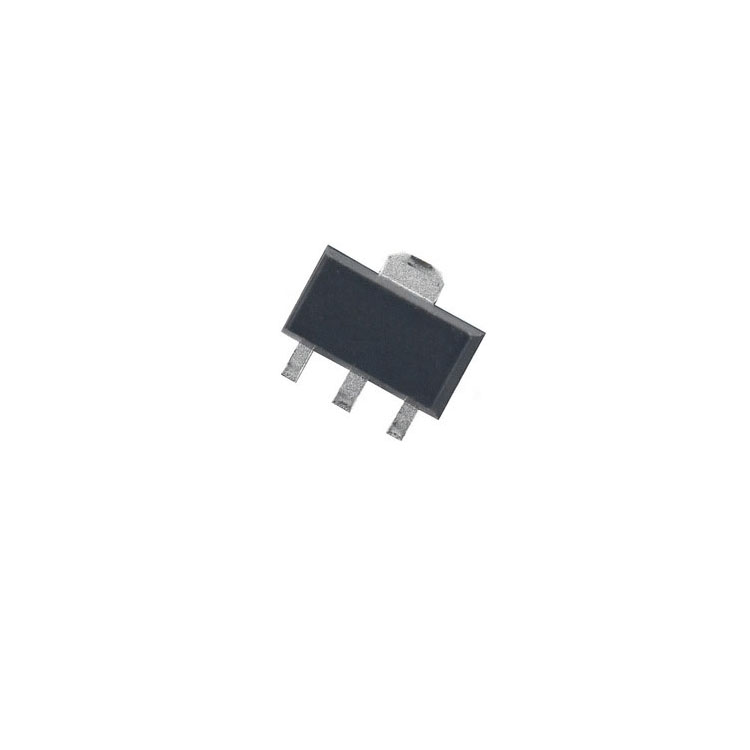

? SOT23-5、SOT89 package

Applications

  Battery-powered equipment

 Communication equipment

  Mobile phones

  Portable games

  Cameras, Video cameras

  Reference voltage sources

General Description

The TX8210 series are highly accurate, low noise, CMOS LDO Voltage Regulators. Offering low output noise, high ripple rejection ratio, low dropout and very fast turn-on times, the TX8210 series is ideal for today’s cutting edge mobile  phone. Internally the TX8210 includes a reference  voltage source, error amplifiers, driver transistors, current limiters and phase compensators.

The output voltage is set by current trimming. Voltages are selectable in 100mV steps within a range of 1.2V to 5.0V.

The TX8210 series is also fully compatible with low ESR ceramic capacitors, reducing cost and improving output stability. This high level of output stability is maintained even during frequent load  fluctuations, due to the excellent transient  response performance and high PSRR achieved across a broad range of frequencies. The CE  function allows the output of regulator to be turned off, resulting in greatly reduced power consumption
