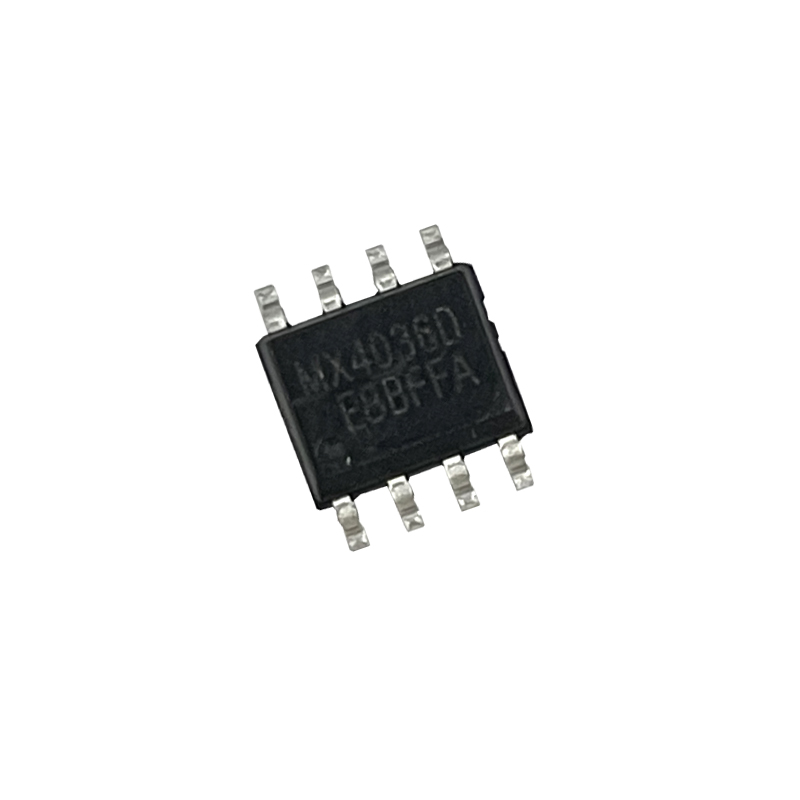

宁波MX4036（充电IC）

1 Features

* Constant-Current/Constant-Voltage Operation with Thermal Regulation to Maximize Charge Rate Without Risk of Overheating

* Continuous Programmable Charge Current Up to 1A

* No MOSFET, Sense Resistor or Blocking Diode Required

* Preset 4.2V/4.35V/4.05V/4.4V/4.1V Charge Voltage with ±1% Accuracy

* Charge Status Output Pin

* Battery Temperature Sensing

* C/10 Charge Termination

* 2.9V Trickle Charge Threshold

* 100μA Supply Current in Shutdown mode

* Automatic Recharge

2 Applications

* MP3 /MP4 Players

* Wireless handsets

* USB charge applications

* Charging docks, charging cradles

3 Description
